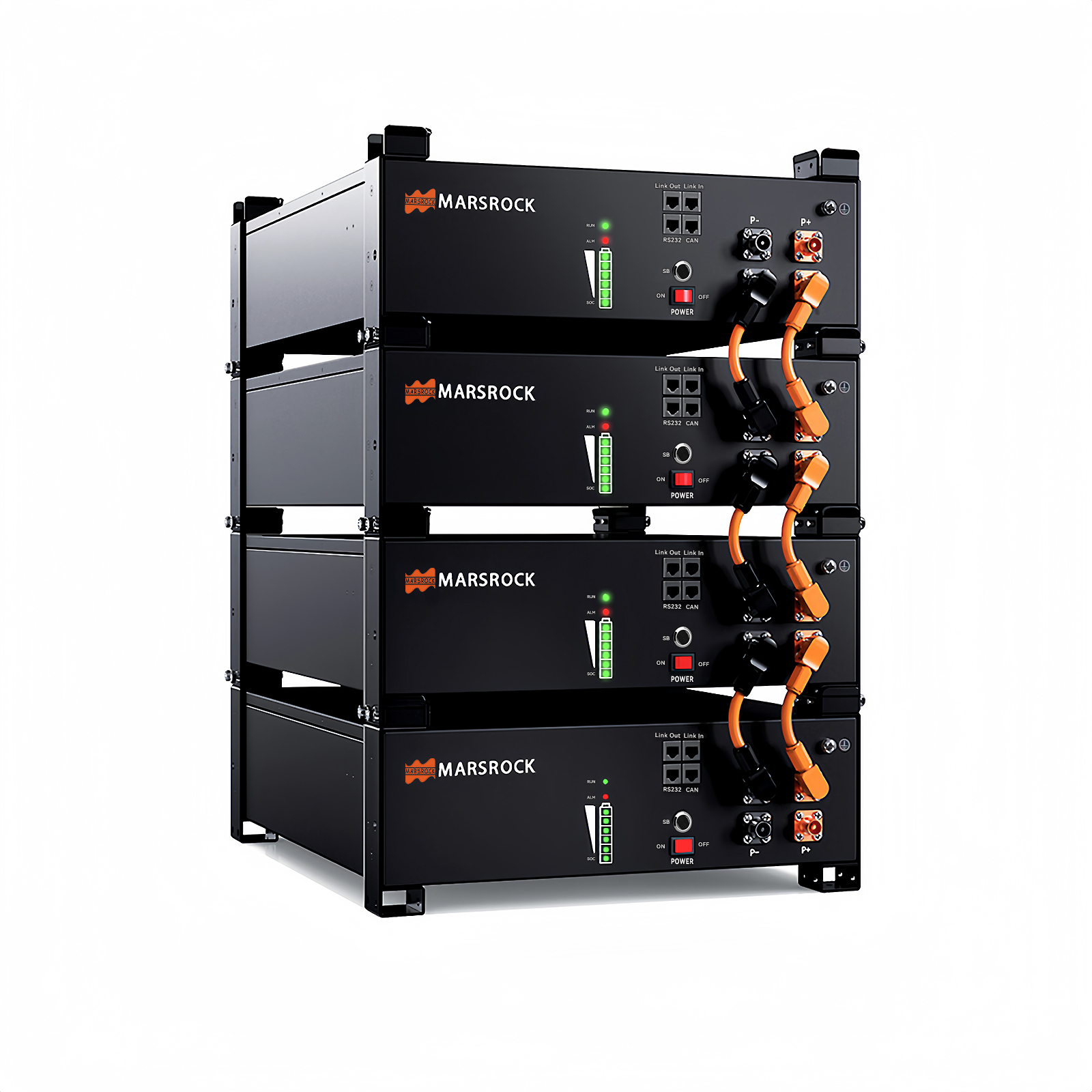

Feature
More Usable Energy：100% Depth of Discharge
Flexible Investment：Modular Design Max 15 batteries in parallel
Safe & Reliable：Premium Lithium Iron Phosphate(LFP) 6000 Cycles
Easy Installation：Rack / Wall / Cabinet-Mounted
Quick Commissioning：Automatic ID Assignment
Perfect Compatibility：Compatible with Major PCS Brands
| Performance | SQ 5.324kWh*N | |
| Cell technology | LFP (LiFePO4) | |
| Battery usable energy [1] | 5.324 kWh | |
| Nominal voltage | 51.2 V | |
| Operating voltage | 45.6 - 56.16 V | |
| Nominal output current | 100 A / 50 A | |
| BMS protection current | 110 A, 1 s | |
| Communication | ||
| Display | SOC status indicator, LED indicator | |
| Communication | CAN / RS485 / RS232 | |
| General Specification | ||
| Weight | 440×550×130 mm | |
| 17.3×21.6×5.12 inch | ||
| Dimension (W*D*H) | 46 kg (101 Ibs) | |
| Installation | Rack / Wall / Cabinet-Mounted | |
| Operating temperature [2] | -20 to 60 °C (-4 to 140 °F) | |
| Environmental humidity | ≤ 95%RH (No condensation) | |
| Protection rating | IP 20 | |
| Cycle life [3] | 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL | |
| Scalability | Max 15 batteries in parallel | |
| Application | ON Grid / ON Grid + Backup / OFF grid | |
| Compatible inverters | Refer to compatible inverter list (Compatible with major PCS brands) | |
| Standard Compliance | ||
| Certificates | Cell: UN38.3 / IEC62619 / UL 1642 / JET | |
| Battery pack: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request) | ||
| Ordering and Deliverable Part | ||
| Part | RT5320 Battery | |
| RT5320 to PCS cable | ||
| RT5320 Parallel cable | ||
[1] Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25℃
[2] Charge/discharge derating occurs when the operating temperature from -10℃ to 5 ℃.& 45 ℃ to 55 ℃
[3] Condition apply. Refer to Warranty Letter
